Company Profile

We are a professional agricultural technology company with 10 years of experience in smart agriculture, specializing in the R&D, design and manufacturing of core components for smart agricultural systems.

Our main products include smart irrigation control panels, integrated fertilizer and water machines, IoT gateways, valve controllers, agricultural environmental sensors and other core components. We provide reliable hardware support and integrated solutions for smart agricultural enterprises at home and abroad.

Based on a decade of technological accumulation, we not only offer standardized components, but also provide customized development services, including software function customization, system UI design, product appearance and structure design. We can flexibly adapt to different scenarios according to customer needs, helping partners build more competitive smart agricultural equipment.

Empowering agriculture with technology, achieving win-win cooperation with professionalism, we are committed to becoming a trusted core component supplier and technical partner in the smart agriculture industry.

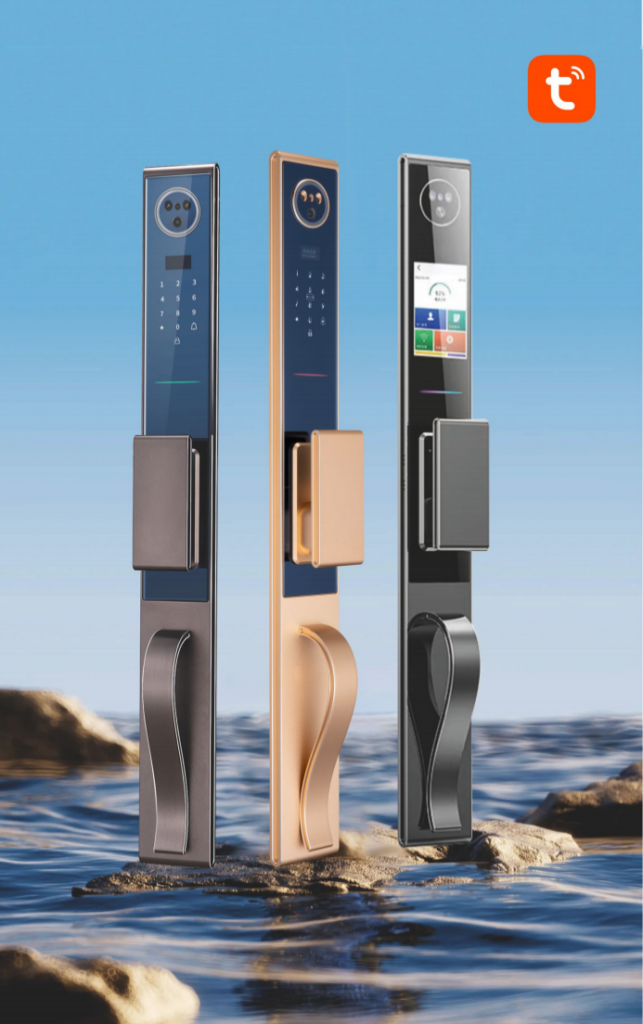

P80 | Villa Smart Lock CNC Precision‑Machined Facial Recognition Smart Lock

Special Functions

National Standard Special‑Grade
Aviation Aluminum Alloy
One‑Piece CNC Precision Machining
Sapphire Tempered Glass
Independent Wide‑Angle 2MP HD Camera
Nano Oxidation Surface Treatment Technology
High Temperature, Corrosion & Oxidation Resistant
Bearing Suspended Handle Structure
3D Facial Recognition System
Contactless Recognition, Unlock with a Wave
Palm Vein Recognition
Remote Unlock via Mobile App
Live‑Sensing Semiconductor Fingerprint Sensor
Equipped with Induction Detection Lock Body
Premium 10 Unlock Modes Available

Dimensions:
Front Panel: 660*72*64mm
Rear Panel: 475*76*69.7mm

Wireless valve controller

2-way pulse signal output
Battery voltage detection and acquisition
Valve fault alarm
Communication distance: 0-10km
Battery life: 5 years
Battery capacity usage time: March
Charging time: full in 2 days
Fixing parts: stainless steel
Shell material: ABS
Operating environment temperature: -20–85°C
Storage ambient temperature: -40–85°C

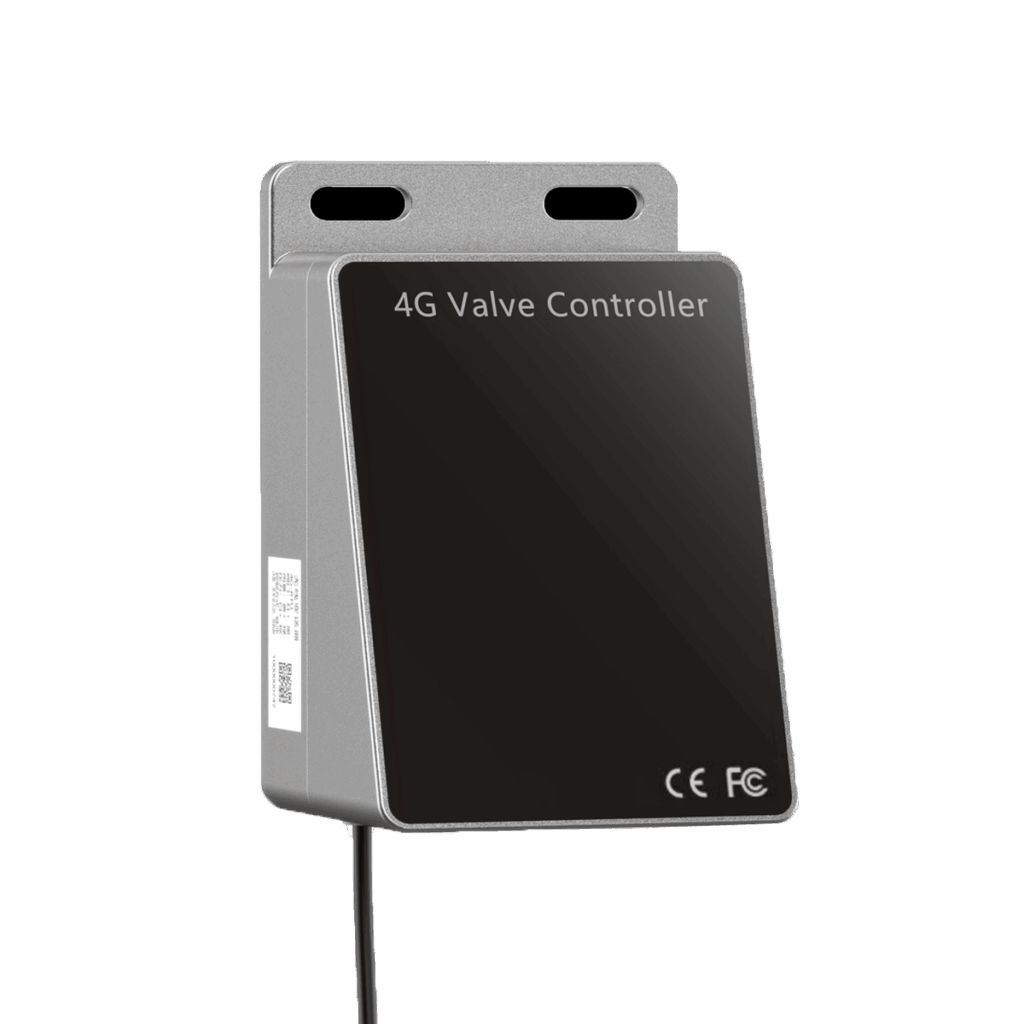

4G Valve Controller

Communication method: 4G
Control method: 12V DC pulse
Battery specifications: 3.7V 3200mAh
External devices: soil moisture sensor, rain gauge
Product features: remote manual irrigation, scheduled irrigation, automatic irrigation
Scheduled irrigation: Allows configuring 4 start times and setting the irrigation amount for each month individually
Automatic irrigation: requires cooperation with a soil water sensor to automatically irrigate based on water potential thresholds.
Rain Sensor: Automatically shuts off irrigation when it rains
Charging power supply: 12V DC (can connect an external 10W solar panel)
Operating Environment: -15°C to 50°C, 0% to 95%
Dimensions: 100mm144mm84mm

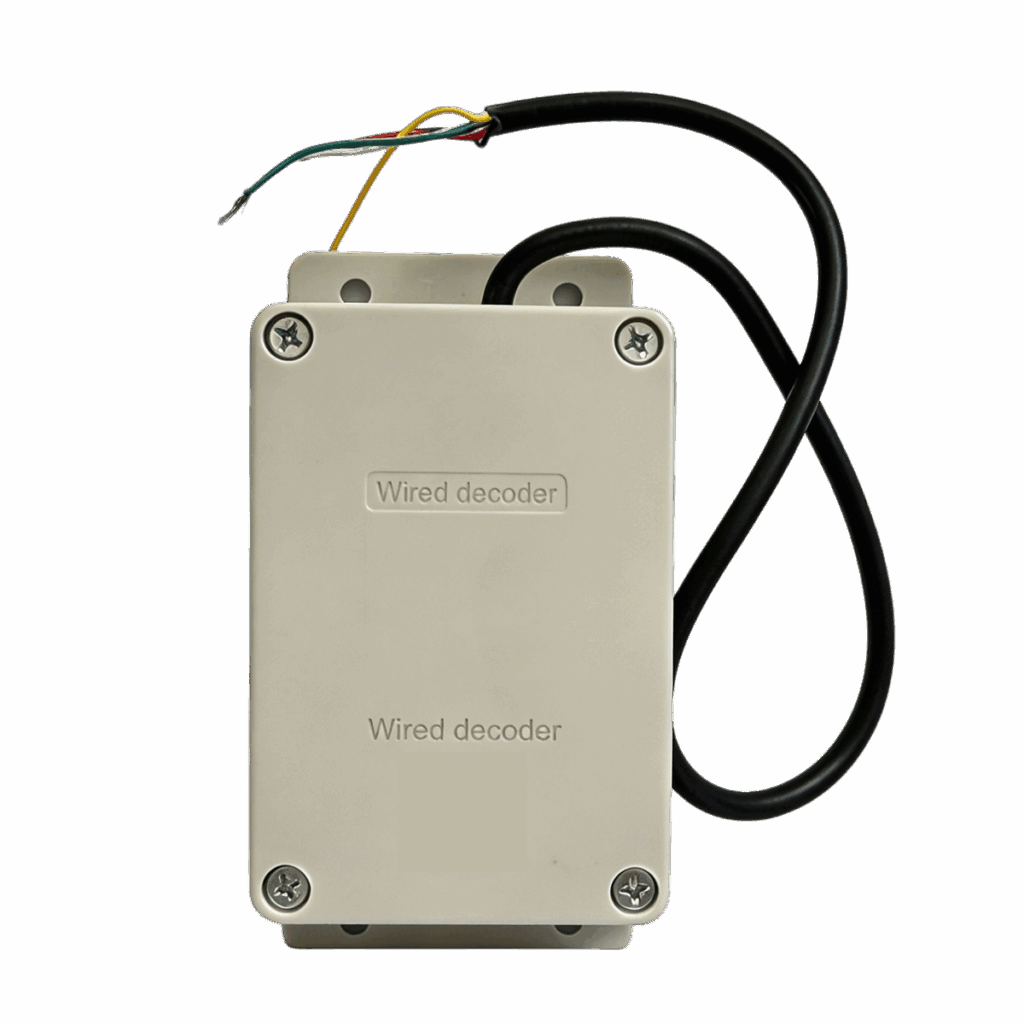

Decoder

Dual-line decoding
24VAC
1-way pulse valve control output
High anti-interference capability
2.5 square KVV cable (twisted pair preferred)
IP68 waterproof
Working environment: -20°C~65°C

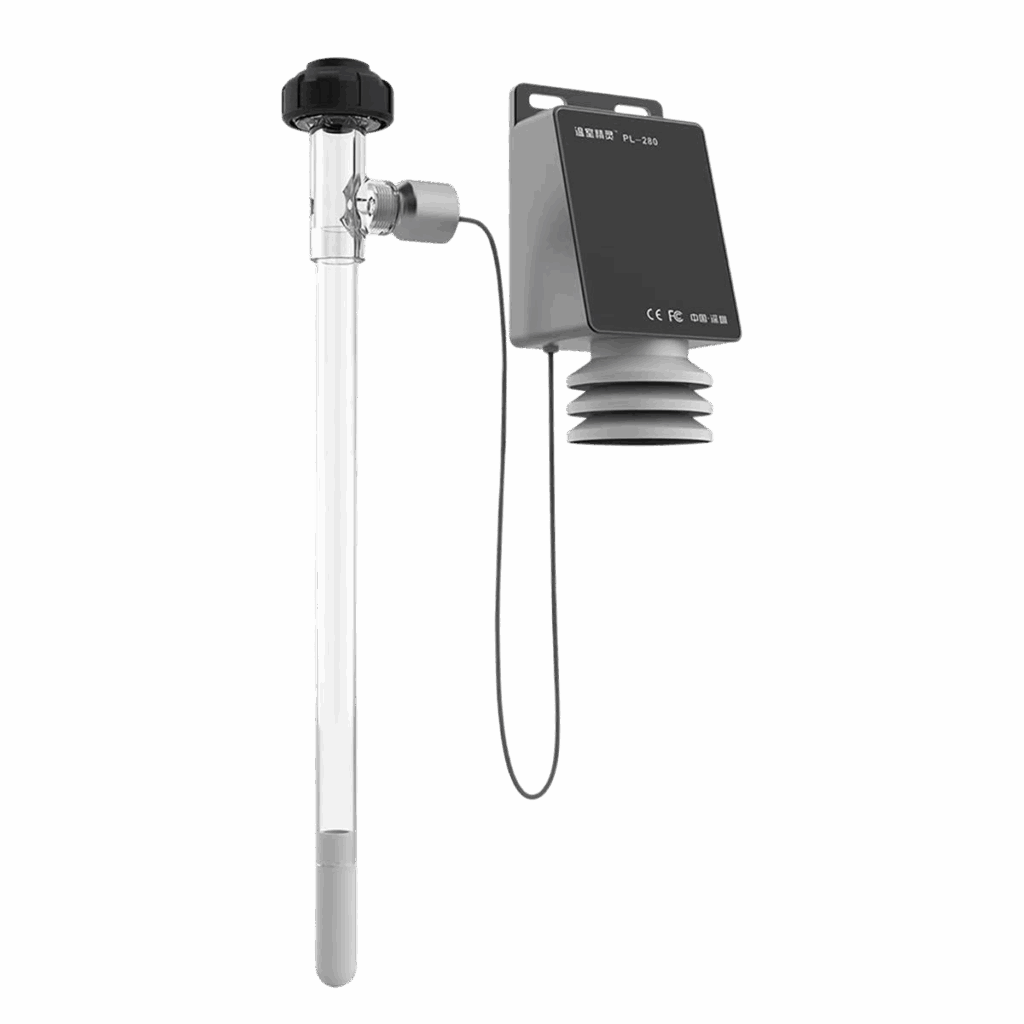

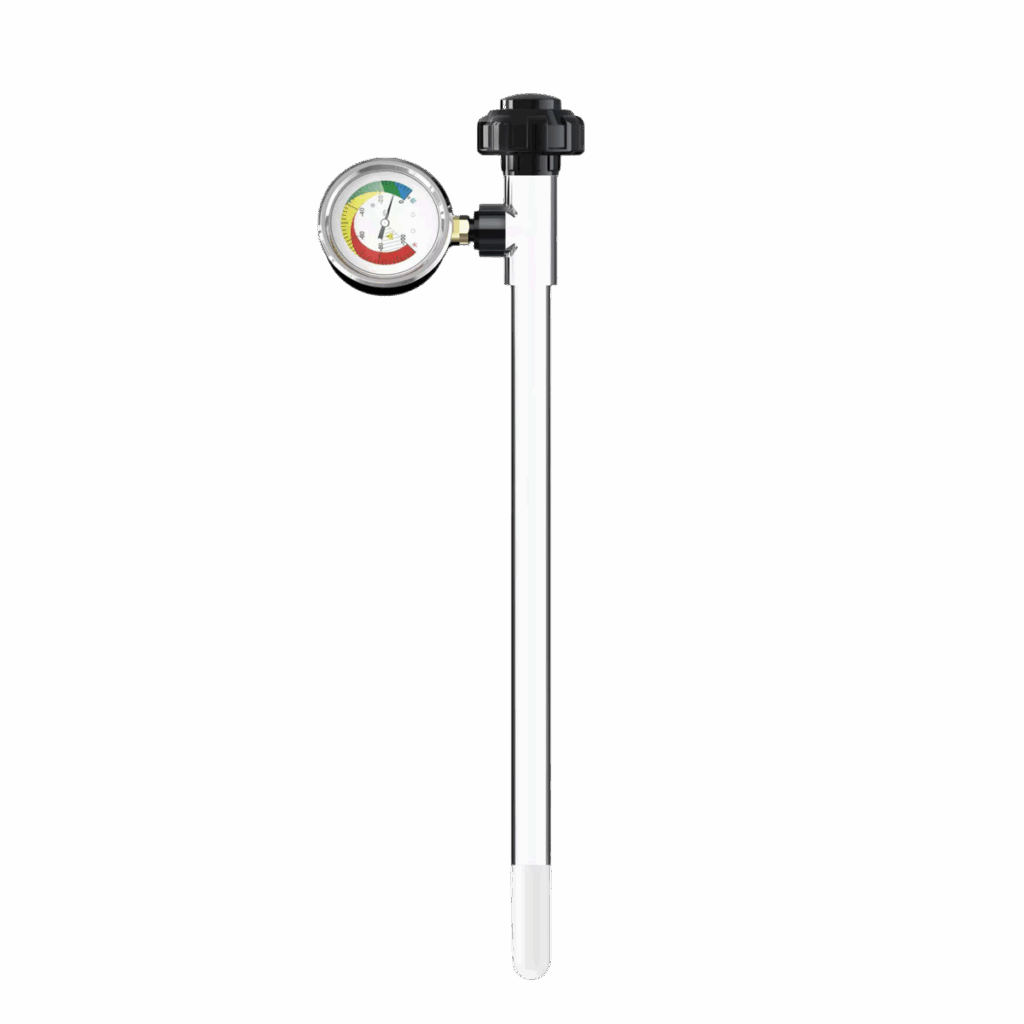

Soil water potential sensor

Tension measurement range: -100~0kPa
Tension Measurement Accuracy: ±0.1kPa
Tension Resolution: ±0.1kPa
Soil Temperature Range: -20°C~80°C
Soil temperature resolution: 0.1°C
Soil temperature accuracy: ±0.3°C

Multi-function sensor

Tension measurement range: -100~0kPa
Tension Measurement Accuracy: ±0.1kPa
Tension Resolution: ±0.1kPa
Soil Temperature Range: -20°C~80°C
Soil temperature resolution: 0.1°C
Soil temperature accuracy: ±0.3°C
Air temperature range: -20°C~80°C
Air Temperature Accuracy: ±0.3°C
Air humidity range: 0-100%RH
Air Humidity Accuracy: 3%RH
Operating Temperature: 2-50°C

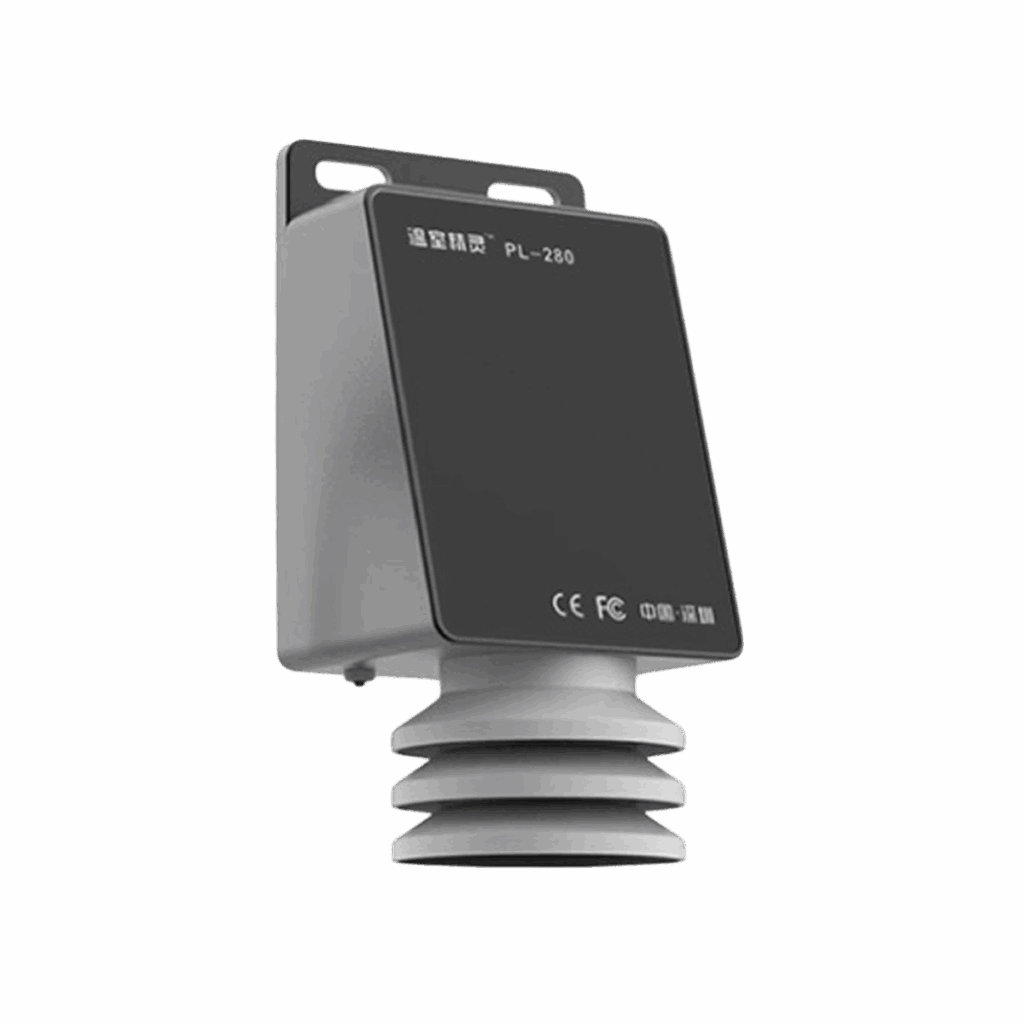

Multi-functional Sensor for Greenhouses

Air temperature range:-20C~80C
Air Temperature Accuracy：土0.3C
Air humidity range:0-100%RH
Air Humidity Accuracy:3%RH
Operating Temperature: 2-50C

Technical parameter

Air temperature

Measurement range: -40~85°C
Measurement accuracy: ±0.3°C
Resolution: 0.01°C

Air humidity

Measurement range: 0~100%RH
Measurement accuracy: ±3% (At 10%~80%, no condensation)
Resolution: 0.01%

Atmospheric pressure

Measurement range: 500~1100hPa
Measurement accuracy: ±0.5hPa
Resolution: 0.1hPa

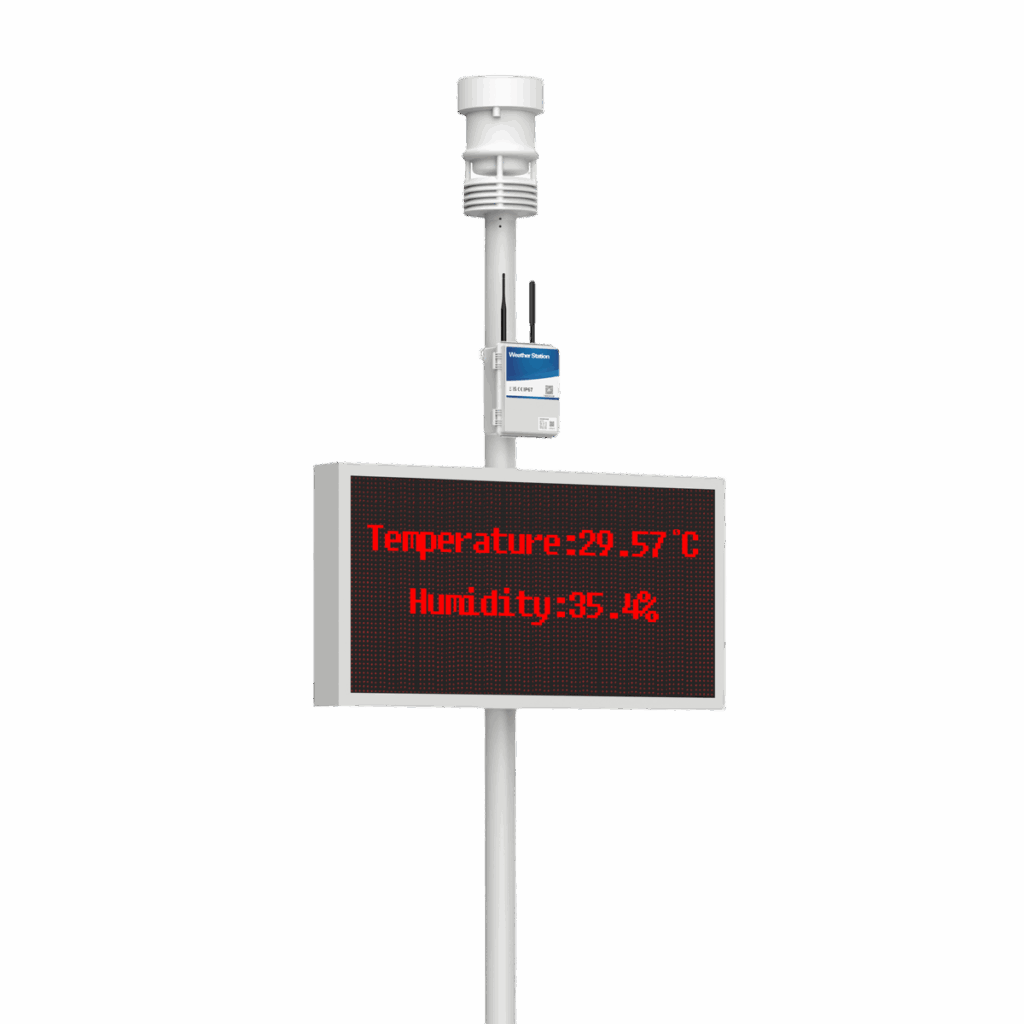

Weather station

Wind speed

Measurement range: 0~40m/s
Measurement accuracy: ±(0.3+0.05V)m/s (V≥30m/s)
Resolution: 0.01m/s

Wind direction

Measurement range: 0~359.9°
Measurement accuracy: ±3° (Wind speed ≤10m/s)
Resolution: 0.1°

Rainfall

Measurement range: 0~200mm/h
Measurement accuracy: ±0.4
Resolution: 0.2mm

Light Intensity

Measurement range: 0~200Klux
Measurement accuracy: 0.03V or 1%F.S
Resolution: 10Lux

Solar radiation

Measurement range: 0~2000W/m²
Measurement accuracy: 0.05V or 1%F.S
Resolution: 1W/m²

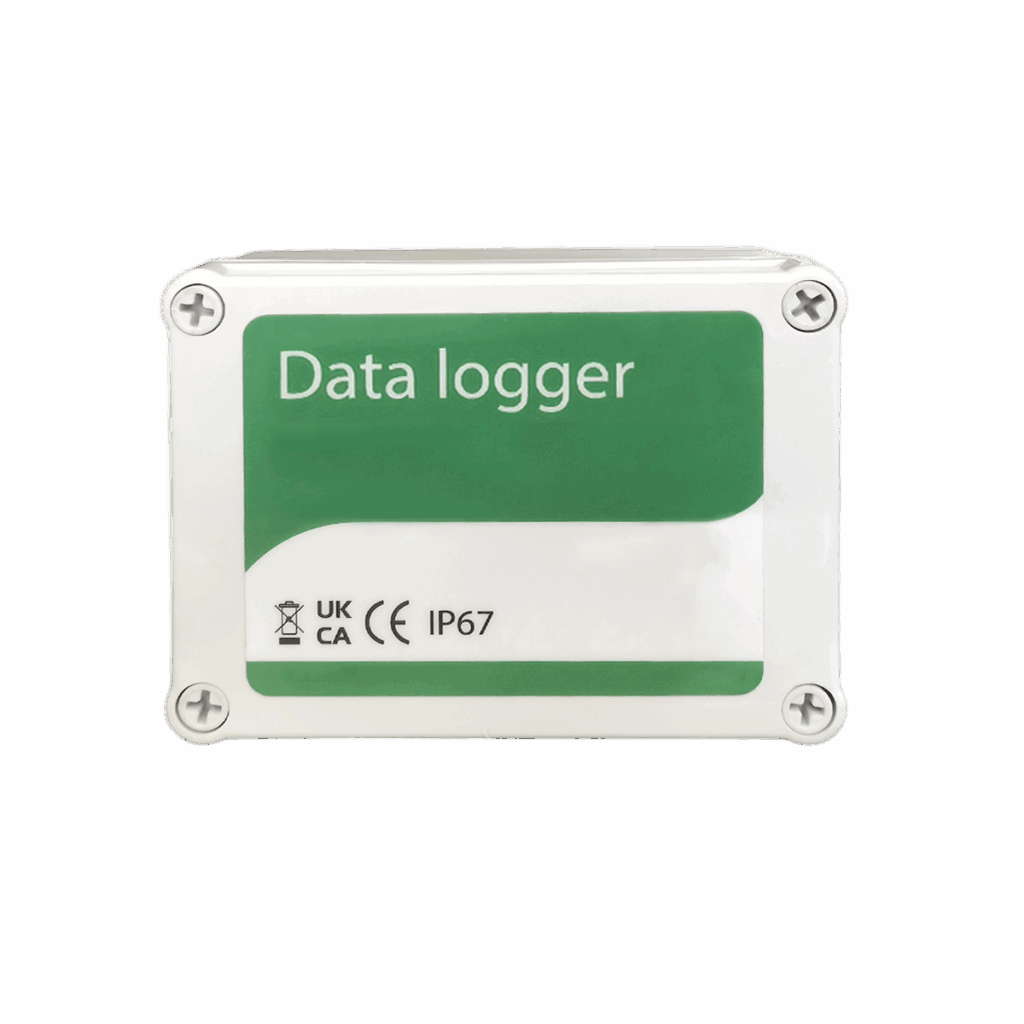

Wired data logger

Charging method: Solar powered / Power adapter DC12V
Power supply mode: Lithium battery 6800mAh
Upbound communication method: 4G/PC Computer
Downline communication method: 12-channel RS485/8-channel 16-bit AD sampling
Working temperature: -20°C~ + 60°C
Protection Rating: IP67
Transmission time: Upload data every 5 minutes

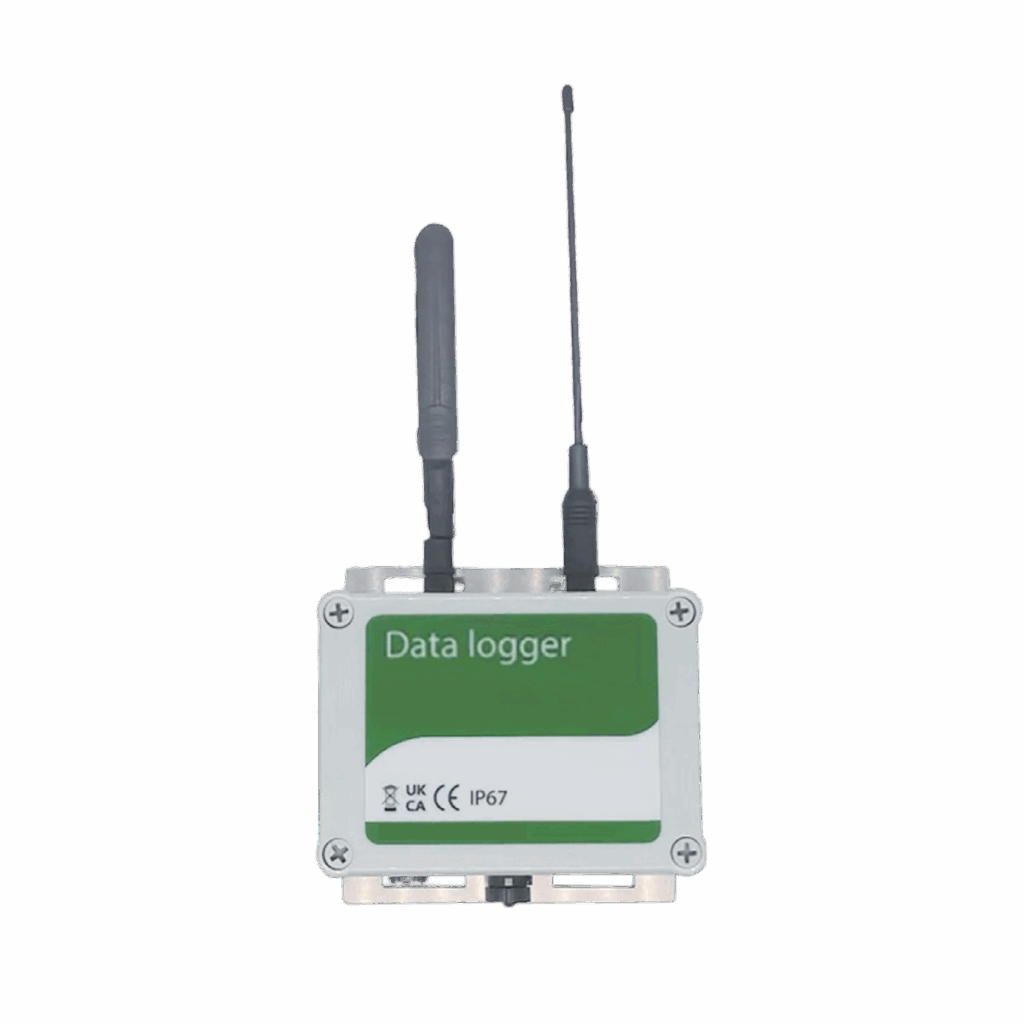

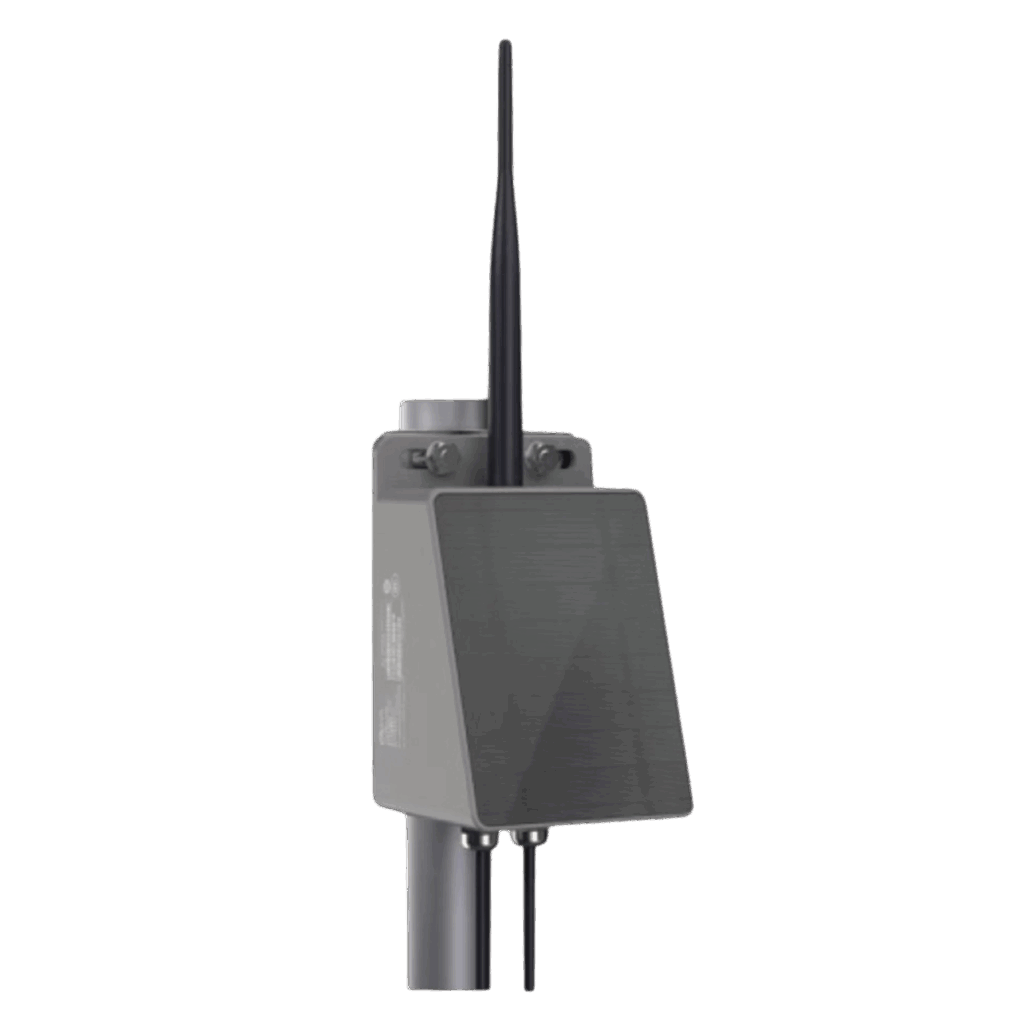

Wireless data logger

Charging method: Solar powered / Power adapter DC12V
Power supply mode: Lithium battery 6800mAh
Upbound communication method: 4G
Lora communication distance: 10KM
Working temperature: -20°C~ + 60°C
Protection Rating: IP67
Transmission time: Upload data every 5 minutes

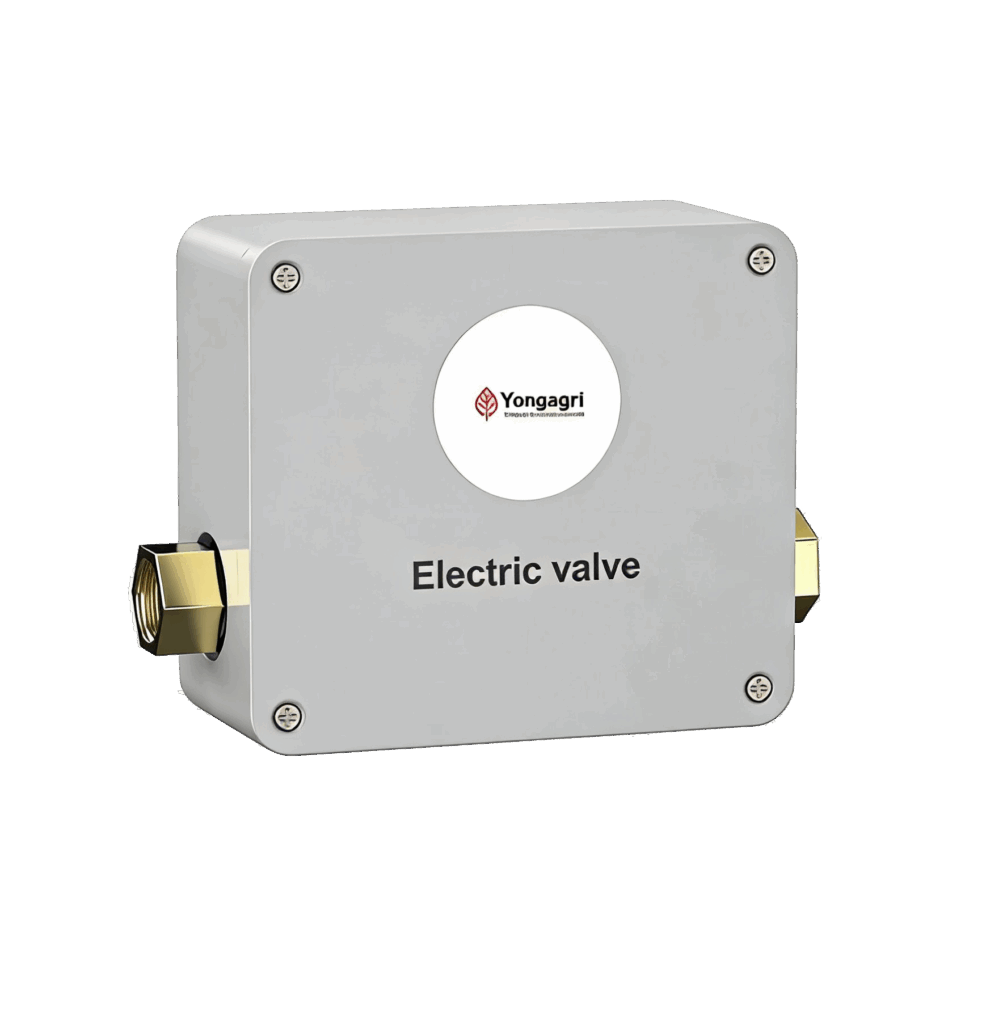

Electric valve

Dimensions: 135*120*50mm
Power supply mode: Battery power supply
Battery life: 2-3 years
Control methods: Mobile phone control, computer control
Water quality sensor: TDS monitoring
Transmission method: Lora

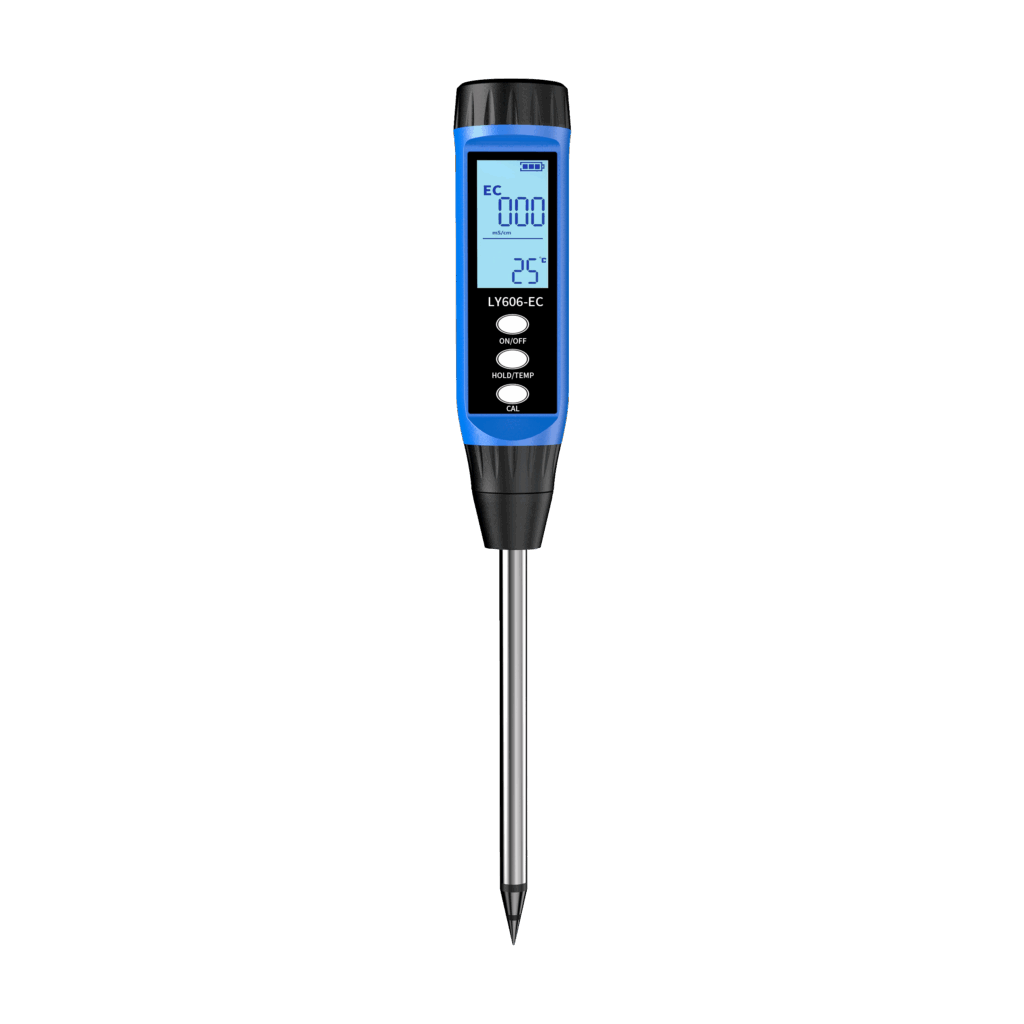

Soil EC Tester

EC range：0-10ms/cm
EC Resolution：0.01ms/cm,0.1℃
Size:31*3.5*3.5cm
Probe length:13.8cm
Temperature range:-10-60℃
Power supply method：Battery-powered

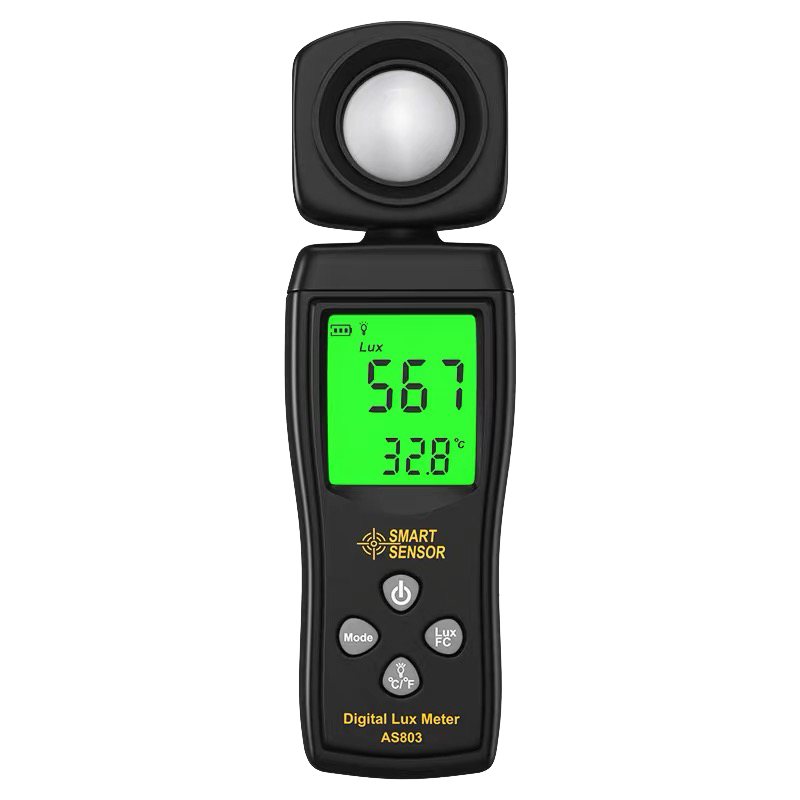

Light intensity sensor
